Grinder for sharpening knives and grinding meat

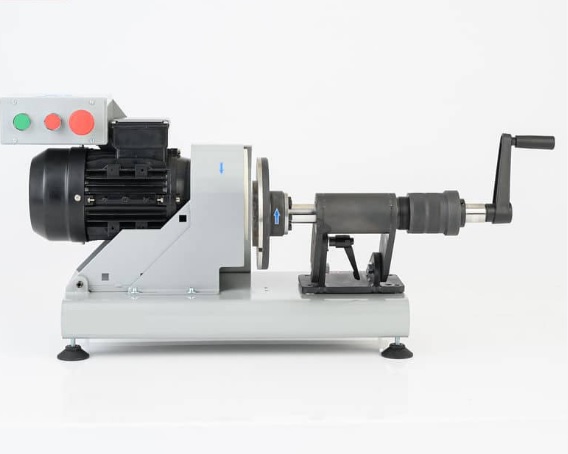

DT meat grinder plate and foot surface grinder for knives and plates up to a maximum diameter of 200 mm. The machine enables surface grinding of meat grinder plates, which resharpens and restores their working plane. To ensure perfect rinsing, it is also necessary to sharpen the meat grinder knife that belongs to the grinder plate! The machine can be ordered with a single-phase 230 [V] or three-phase 380 [V] 1.1 [kW] electric motor. The diameter of the grinding plate is 150 [mm], and the maximum plate processing diameter is 200 [mm].

The grinding knives are mounted in the M6 threaded hole on the plate support shaft using an additional tool. The plates are attached to the worktops with neodymium magnets. The machine can also be used for sharpening UNGER, ENTERPRISE, EXCELISOR type plates. With turntables, it is necessary to mount auxiliary plates on the machine, which can be ordered separately. The surface treatment of the compact machine consists of powder coating, hot-dip plating and galvanizing.
